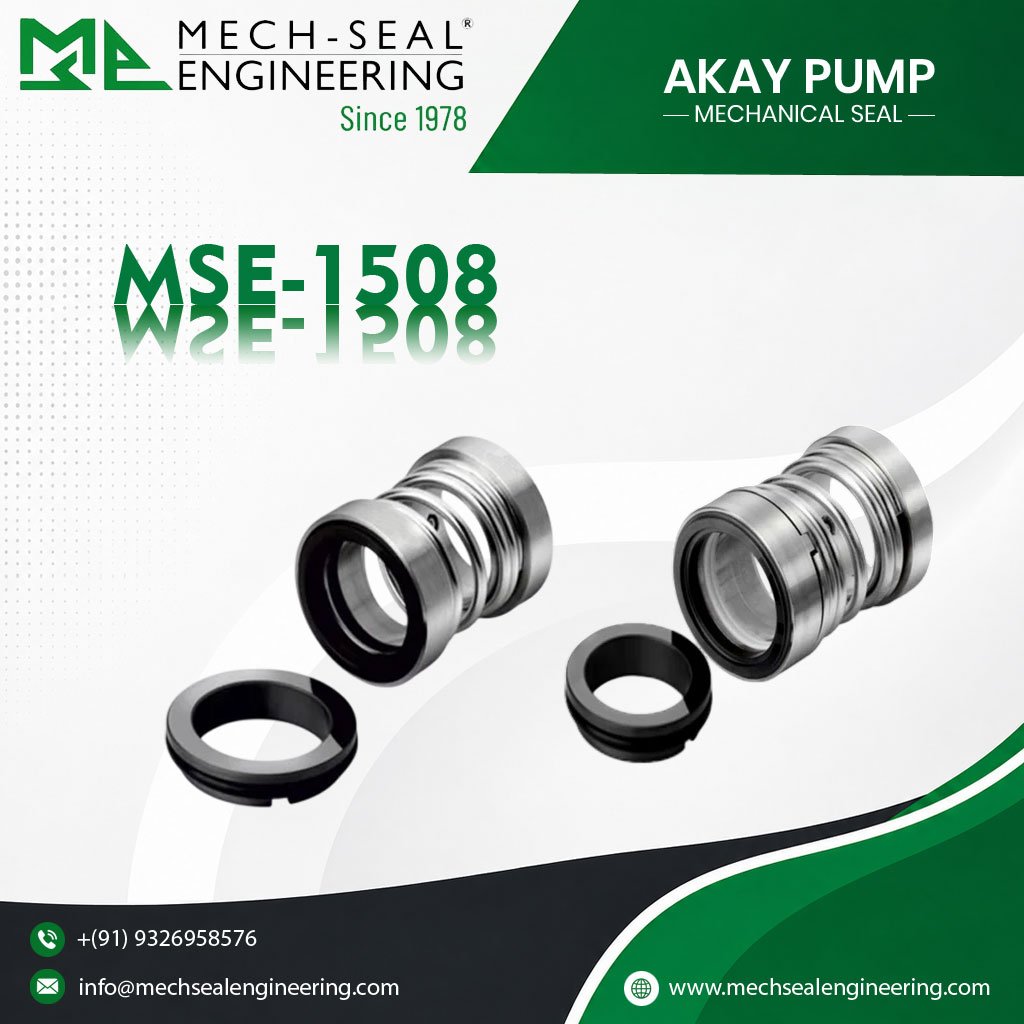

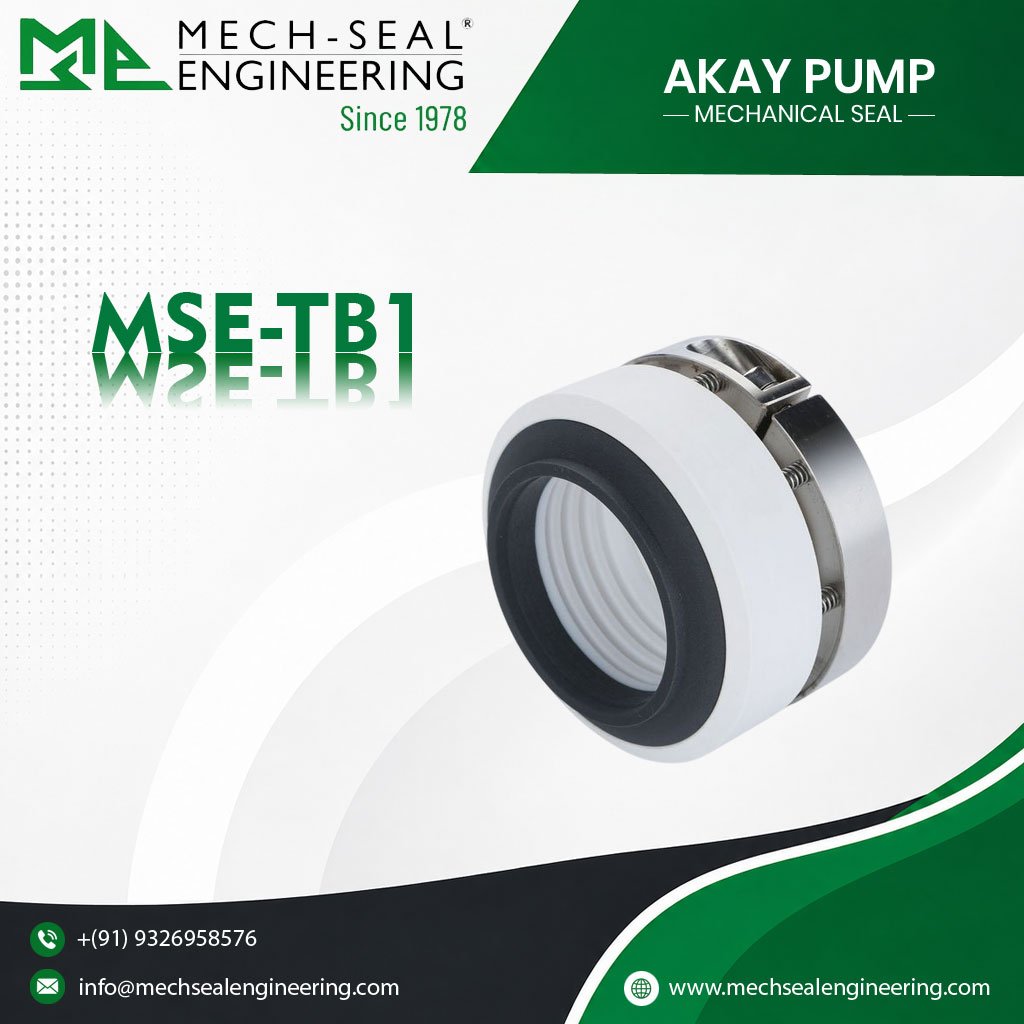

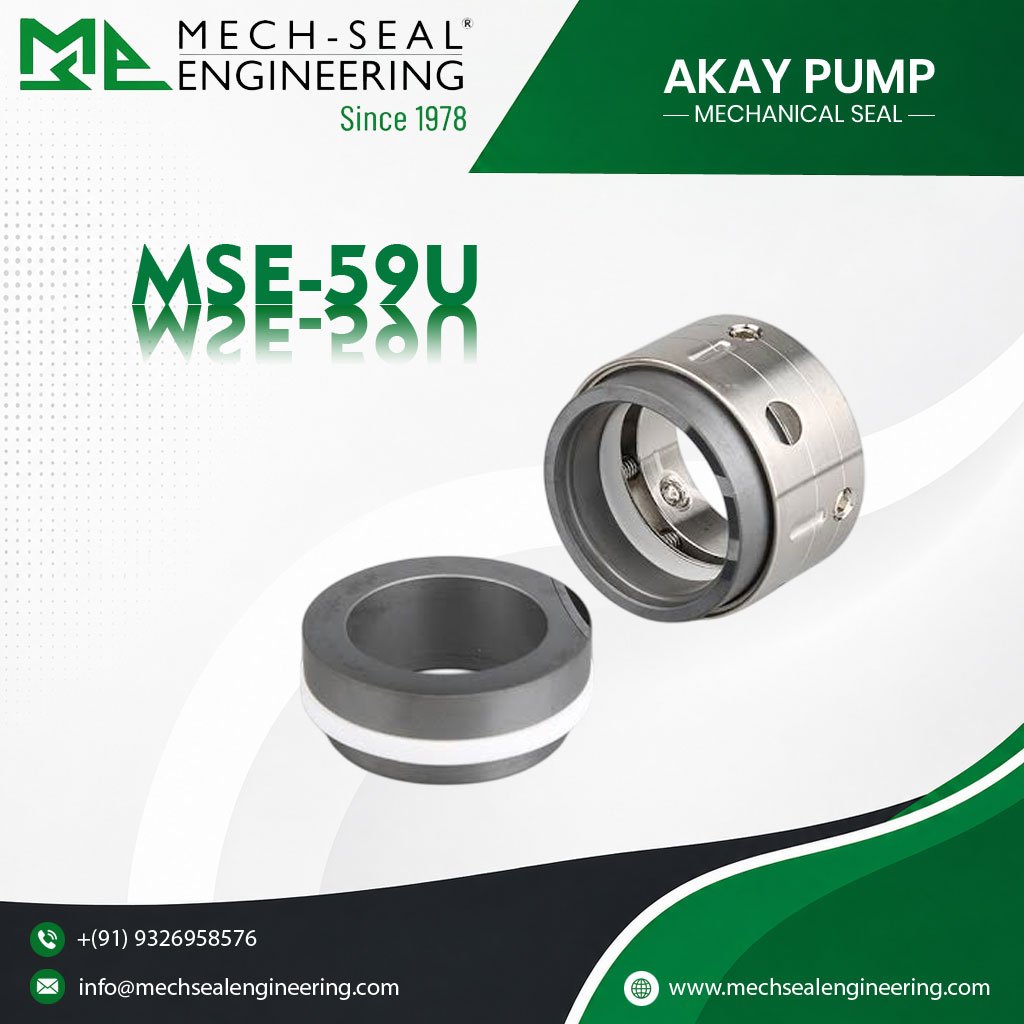

Akay Pump Seal
- Drop-in replacement for Akay pump seals
- Carbon vs. Silicon Carbide faces
- Compact design for easy fitting
- Low leakage, smooth running at start-up
- Suits Akay industrial and process pumps
- Elastomer options: EPDM, NBR, FKM
Longer Seal Life and Fewer Stoppages on Akay Pumps
When a pump seal wears out, the result is leakage, product loss and a stopped line. Most early failures come from dry running, dirty fluid, or a seal that does not match the original size. Our Akay pump seal is made to the original fitting dimensions, so it goes into the existing pump without any modification. Fitting is simple. Clean the shaft, seat the stationary ring squarely in its housing, slide the rotary unit to the correct working length, and refit the cover. The carbon rotary face is paired with a hard Silicon Carbide stationary seat. This pairing handles slightly dirty fluids and mild chemicals, runs cooler, and keeps leakage low over long running hours. The result is longer seal life and fewer pump breakdowns. Share your pump model and shaft size with us and we will confirm the right seal before you order.Technical Details & Engineering Data
Operating Limits
Standard operating parameters for continuous duty
| PRESSURE | Up to 10 bar / 145 PSI |
| TEMPERATURE | -20°C to +120°C |
| SPEED | Up to 15 m/s |
| SHAFT SIZE | 15 mm to 65 mm (on request) |
