Balance Seals

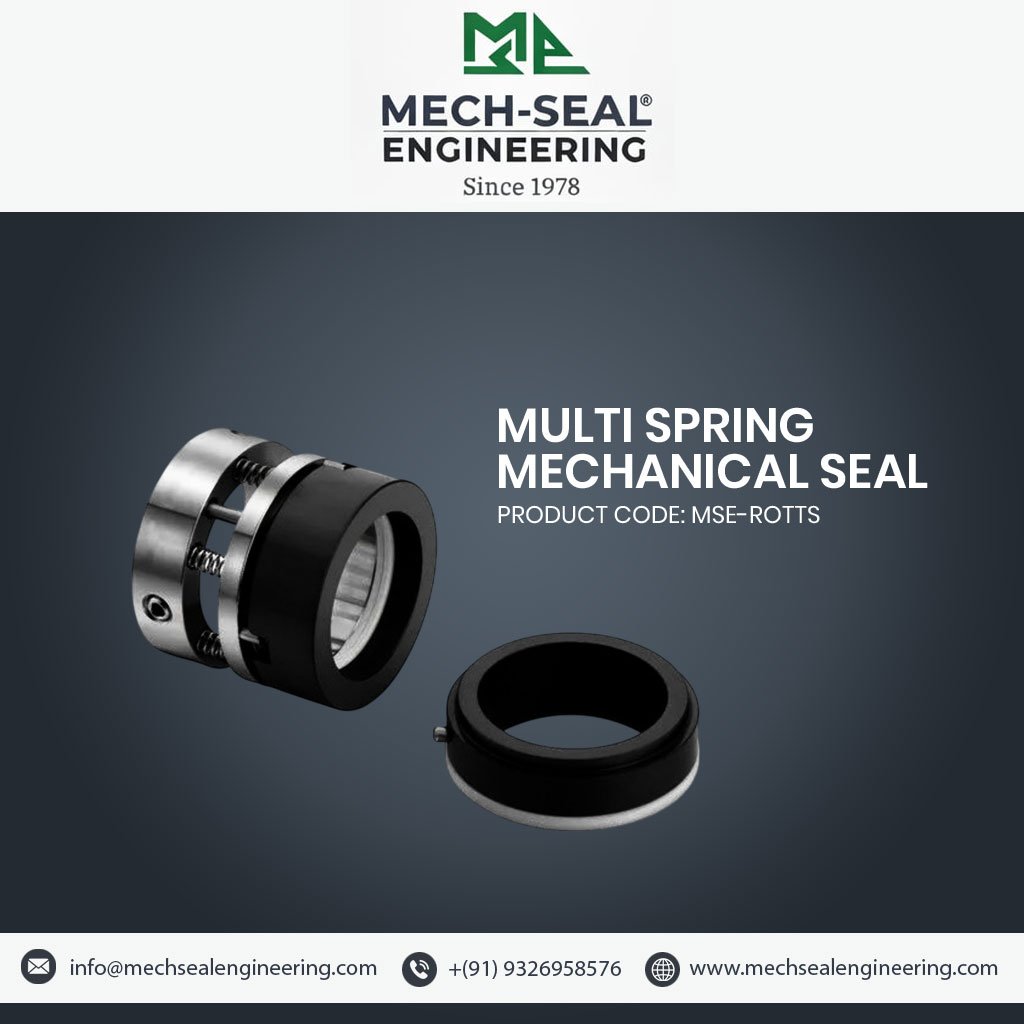

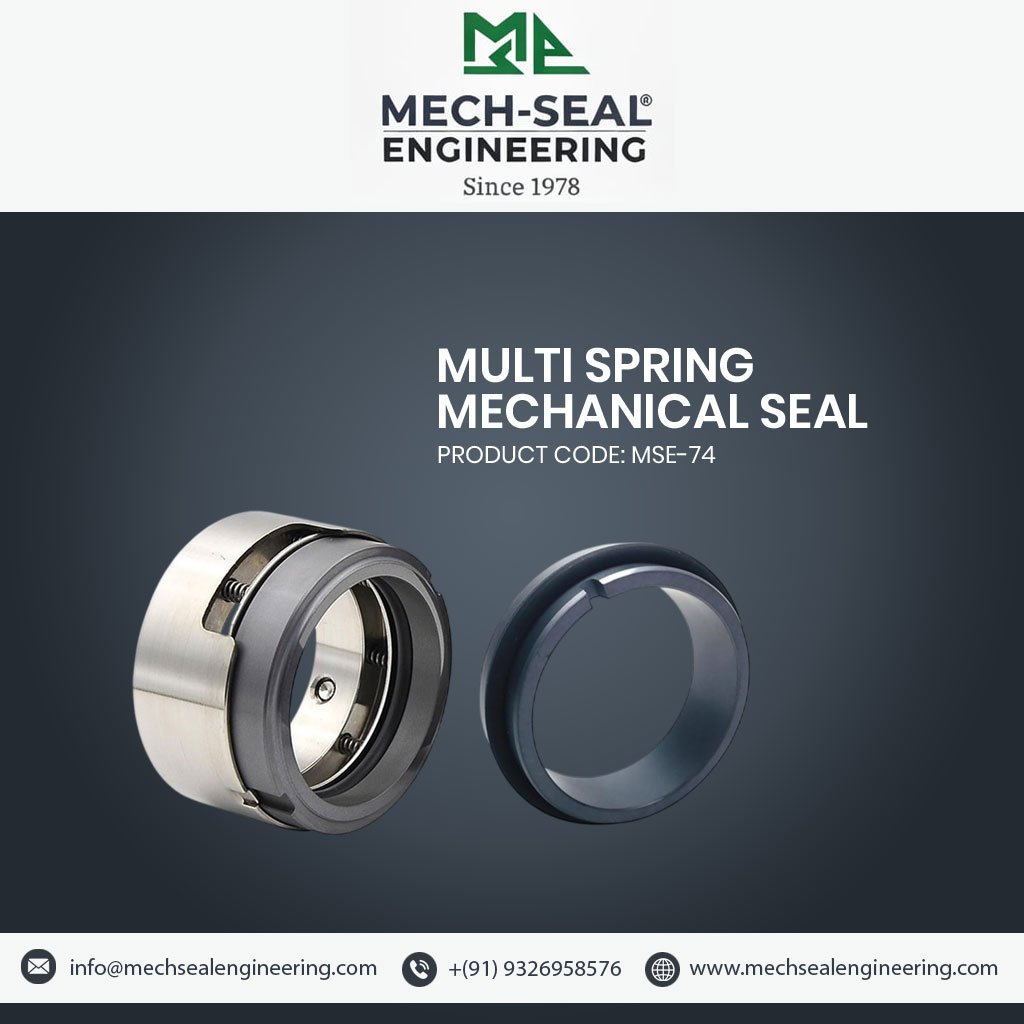

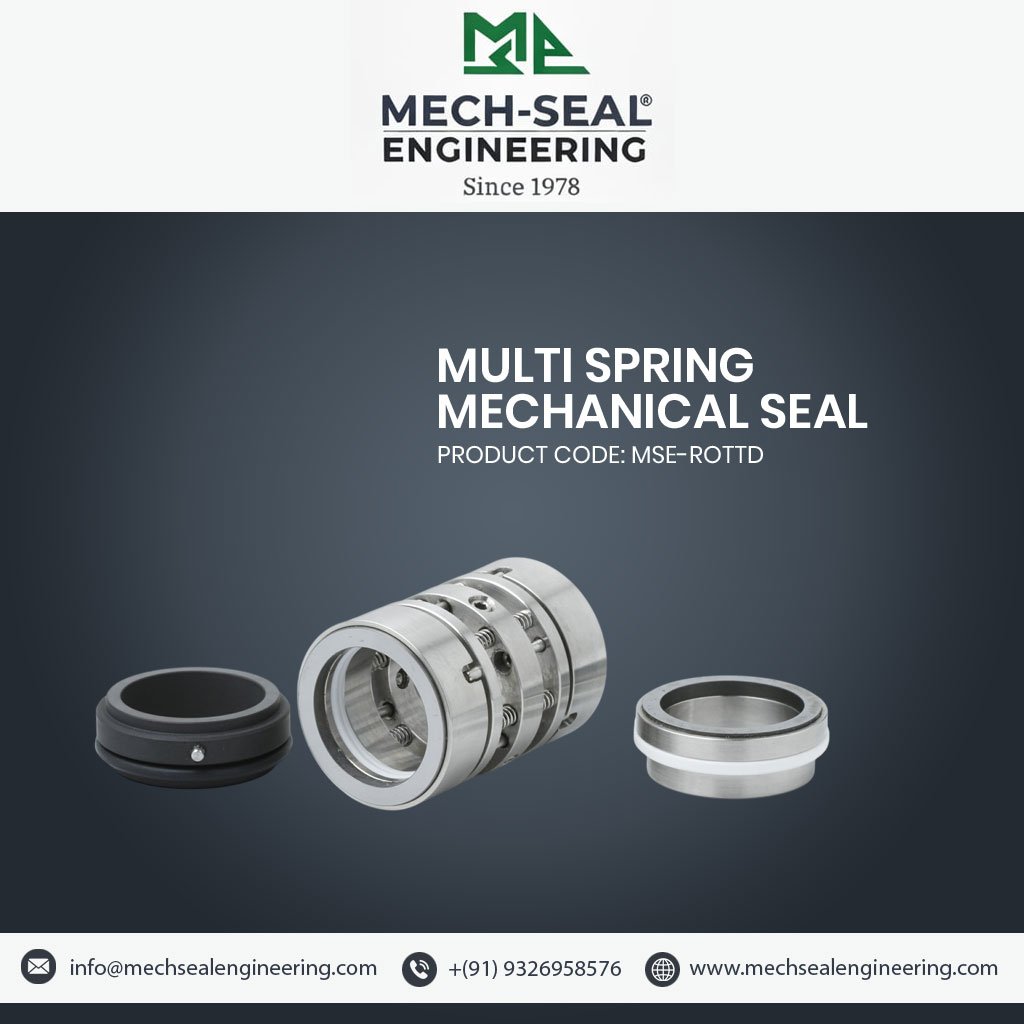

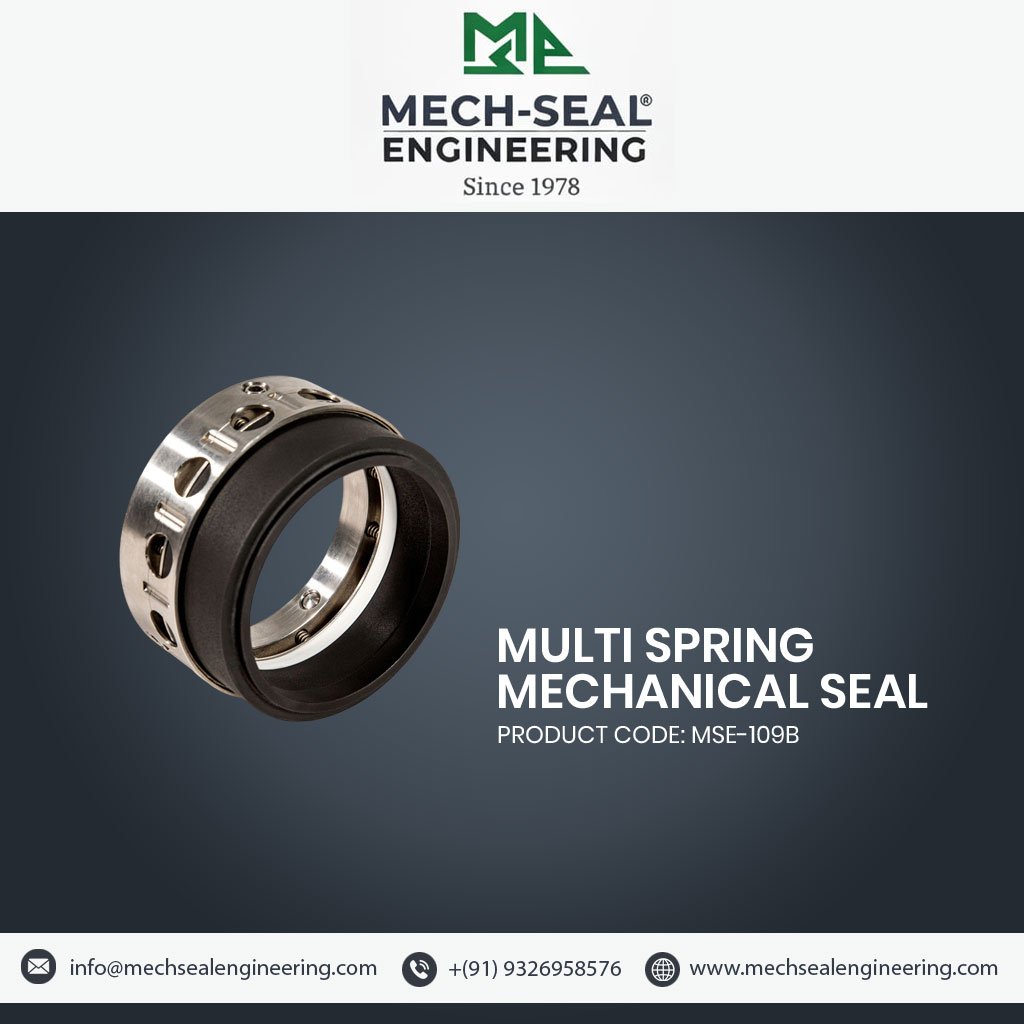

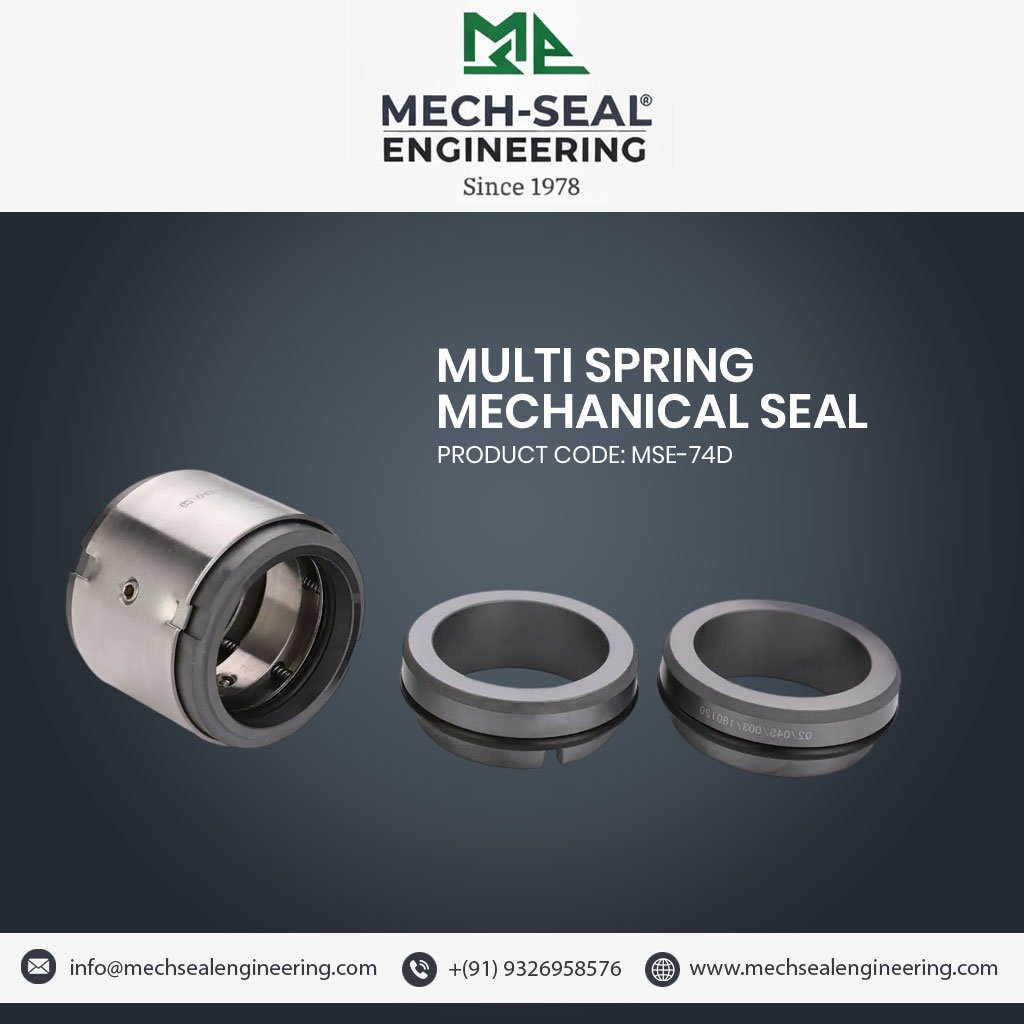

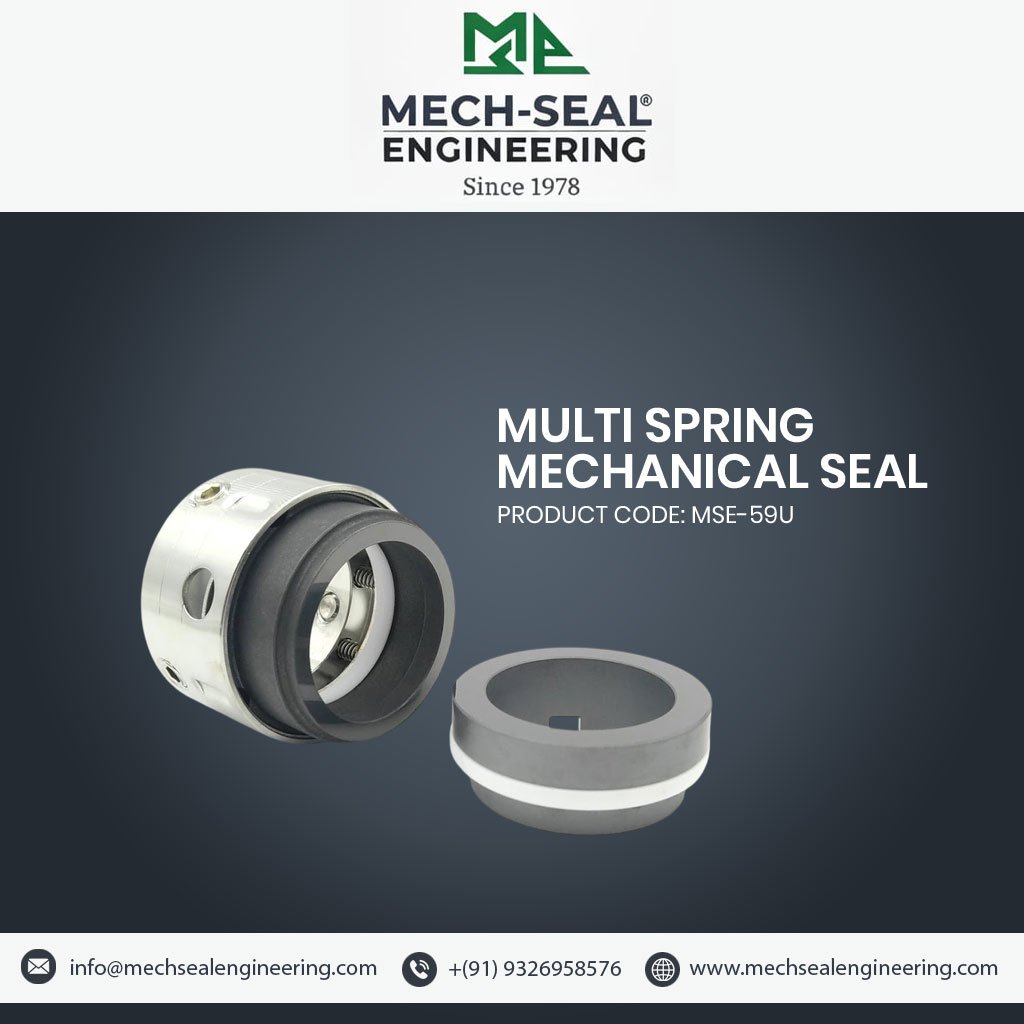

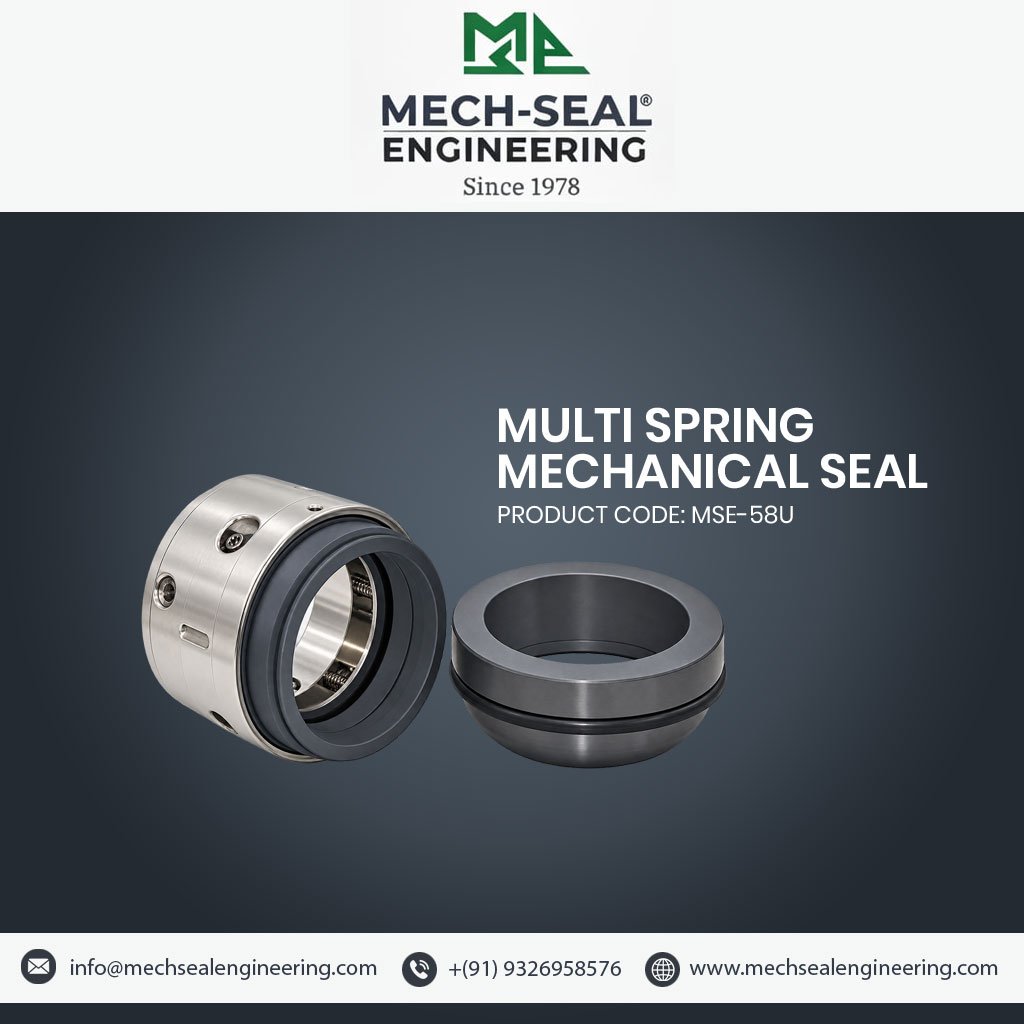

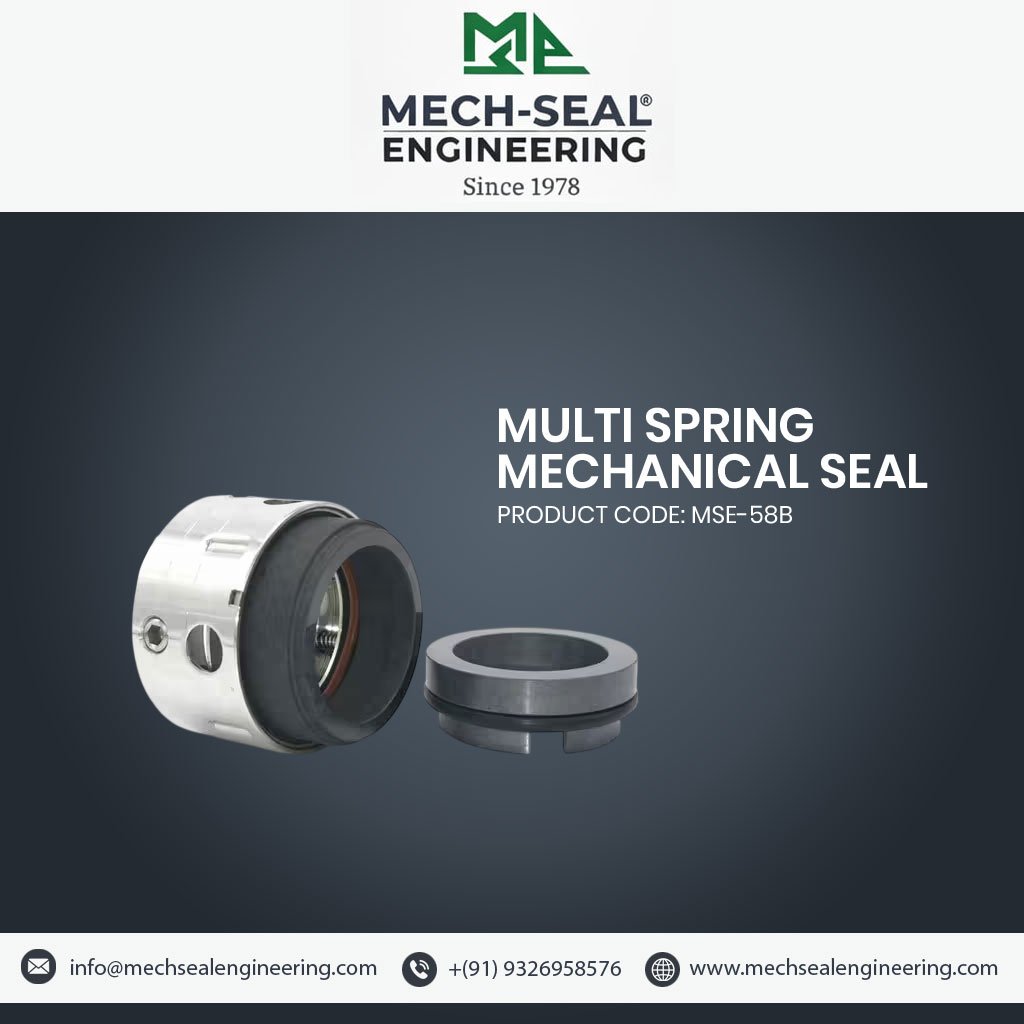

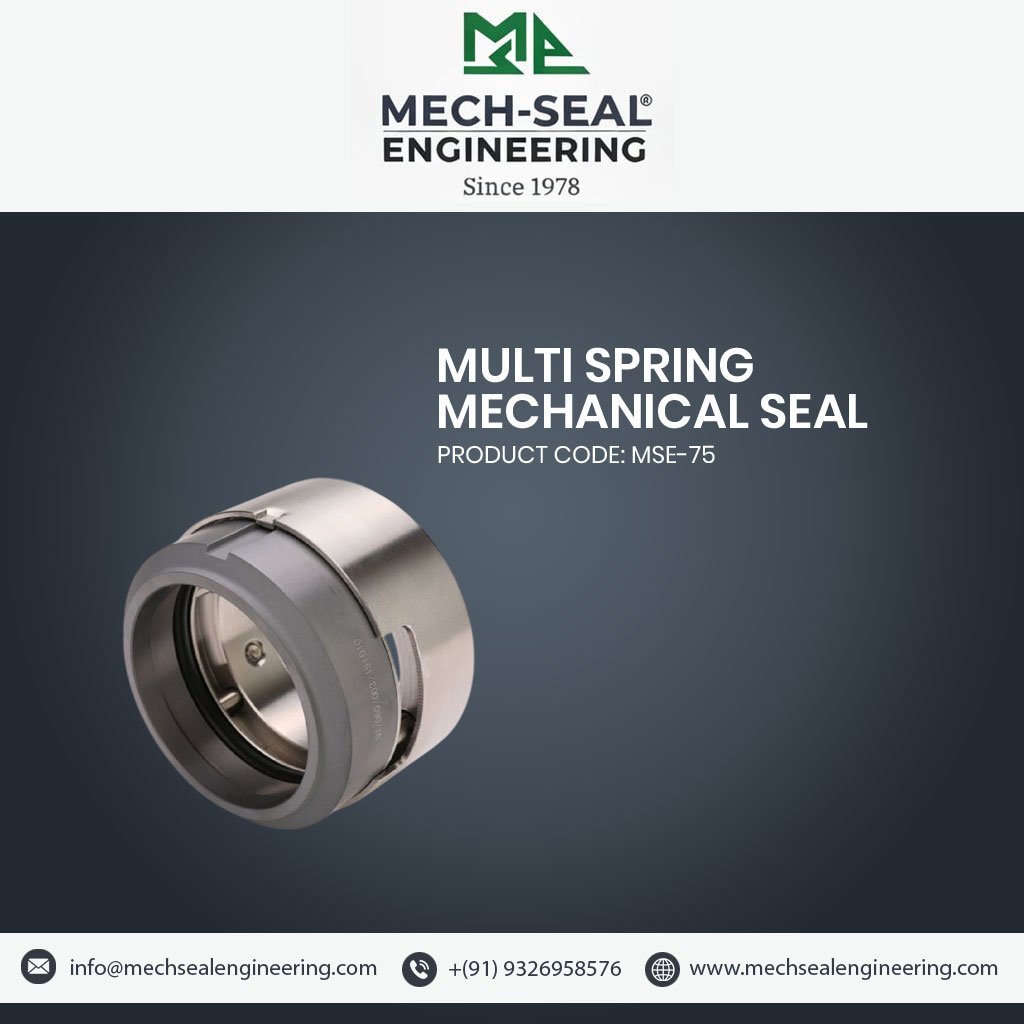

Multi Spring Balanced Mechanical Seal

Balanced face design that minimizes hydraulic closing force, reducing heat generation across the seal faces
Multiple small springs arranged around the seal for even, uniform load distribution across the face
Stable performance at higher shaft speeds compared to single-spring designs
Compact axial length, suitable for pumps with limited seal chamber space
Consistent closing force even under shaft runout or minor misalignment
Suited for clean to moderately clean fluids where fine spring gaps are not a fouling concern
Reliable bi-directional rotation capability for varied pump configurations

PRODUCT DESCRIPTION

Installation Overview & Key Advantages

Installing a multi spring balanced mechanical seal involves fitting the rotating unit onto the shaft, evenly compressing the spring set to the specified working length, and positioning the stationary seat square within the seal chamber before checking shaft alignment. Because the springs are distributed around the seal circumference, achieving uniform compression across all of them is important for consistent face loading. This design's key strengths lie in its ability to maintain steady sealing force at higher speeds and under minor shaft runout, along with its compact axial footprint that suits pumps with tighter chamber dimensions. It performs best in clean to moderately clean fluid service, where the narrow gaps between springs won't be exposed to solids or fibrous contamination. For complete step-by-step installation instructions and torque specifications, refer to our detailed installation guide on the blog.

TECHNICAL SPECIFICATIONS
